ROAD SEFETY

Wireless Traffic Signal Controller (Wi-TraC)

  • State-of-the-art Advanced Traffic Controller with high speed 32-bit ARM9 Micro-Controller

  • Distributed Architecture with 1 Master Controller and up to 16 Slave Controllers

  • Master-Slave configuration with wireless (ISM band) or wired (CAN bus) Master-Slave connectivity for LED Lamp switching

  • Works on either solar power or conventional 230VAC mains

  • 32 Phases, 32 Stages, 24 Cycle Plans, 20 Day Plans, 20 Special Day Plans, 4 Week Plans & 4 Hurry Calls

  • Built-in vehicle detection (camera/loop) & GPS Interface

Red Light-Stop Line Violation   Detection System (RLSVDS)

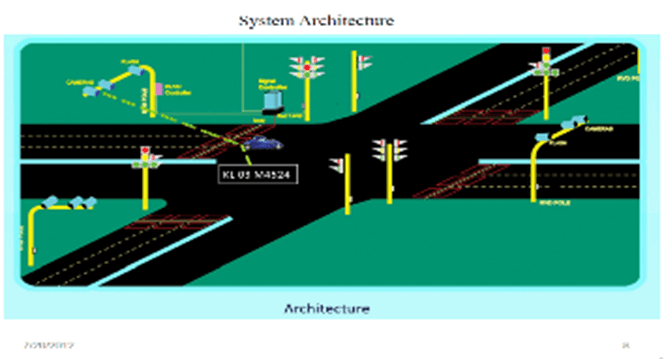

  • RLSVDS comprises of Traffic Controller, Detection Sensors, Video Camera, ANPR Camera, Illuminator, Control Electronics, Communication Network & Central Server

  • Snapshot with number plate details and three seconds video is provided as evidence from RLSVDS Server

  • RLSVDS Software facilitates challan issuance and various report management

  • Speed measurement sensor uses a continuous wave transmitter and receiver in the Microwave Ka band (34,3 GHz) and operates under the principle of the Doppler Effect

CCTV Junction Surveillance

  • End-to-end solution for CCTV Junction Surveillance within the same Traffic Command Control Centre

  • Real time streaming video from junctions and strategic locations enables effective traffic & incident management from remote Traffic Command Control Centre

  • Allows operators to directly observe the traffic conditions at all junctions, verify incidents and congestion conditions

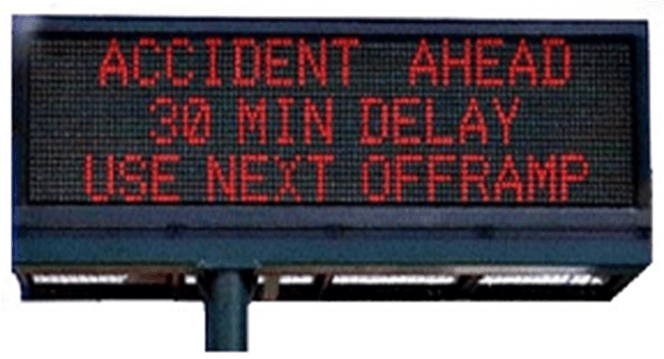

Variable Message Sign (VMS)

  • VMS is an electronic message sign with systematically arranged cluster of Light Emitting Diodes (LED) which are wired together and electronically driven & controlled.

  • The systematic array of LEDs and their logical driving produces readable texts and graphic displays

  • VMS can be remotely controlled through wired or wireless communication.

  • VMS has got multiple applications e.g. give road users updated information on road/traffic conditions, at strategic locations to display public utility messages and in the field of advertising

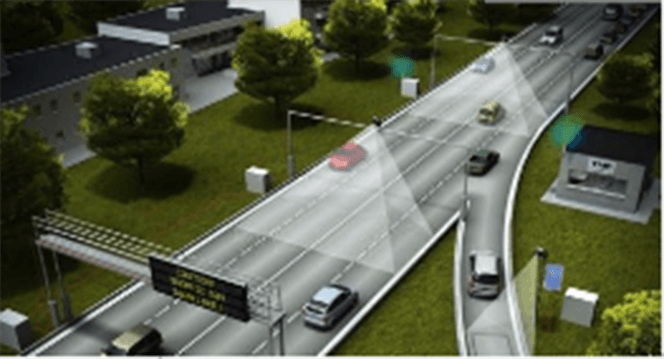

Video Incident Detection

  • Through real-time analysis of images of the camera, incident detection module is able to detect all major incidents within seconds

  • This high speed detection and incident verification can seriously reduce the impact of the incidents and prevent secondary accidents

  • Automatic Incident Detection can be done for : stopped vehicles, drivers on the wrong-way, pedestrians, lost cargo, smoke & fire, queue, speed drop among others
